Developer Guide for lesSON

Table of Contents

1. Acknowledgements
2. Setting up, getting started
3. Design
   • Architecture
   • UI component
   • Logic component
   • Model component
   • Storage component
   • Common classes
4. Implementation
   • Add
   • Delete
   • Filter by tag
   • Random
   • Markdown Support
   • Space Repetition
   • Data Transfer

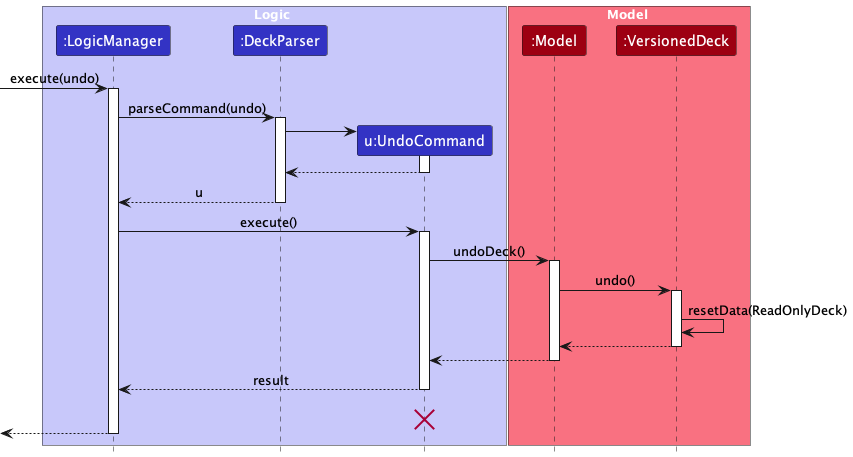

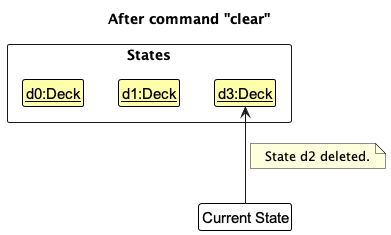

   • (Proposed) Undo/Redo
5. Documentation, logging, testing, configuration, dev-ops
6. Appendix: Planned Enhancements
7. Appendix: Effort
8. Appendix: Requirements
   • Product scope
   • User stories
   • Use cases
   • Non-Functional Requirements
   • Glossary
9. Appendix: Instructions for manual testing

---

Acknowledgements

• This project is a part of the se-education.org initiative. If you would like to contribute code to this project, see se-education.org for more info.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

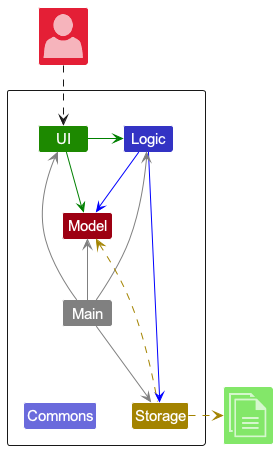

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

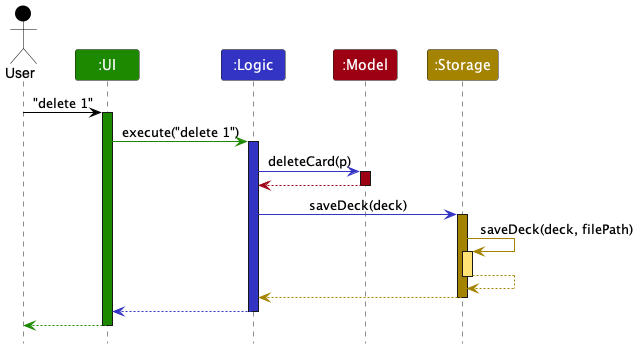

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

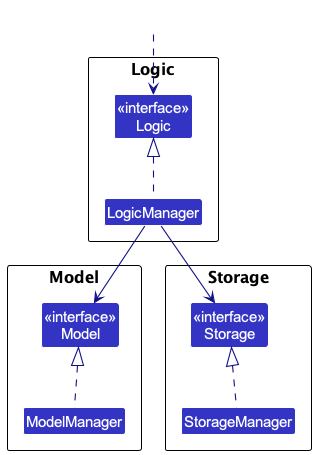

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

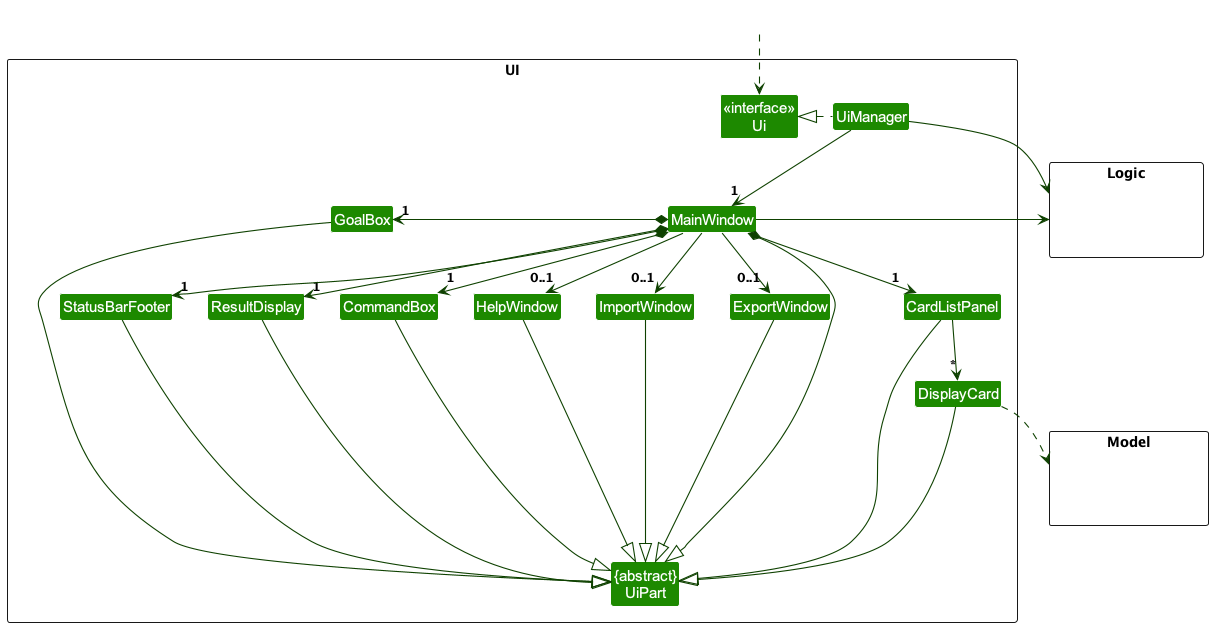

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, CardListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Card object residing in the Model.
• answer of the Card created is hidden from the user when they browse the Deck
• user can scroll to see the different Card listed in lesSON

Logic component

API : Logic.java

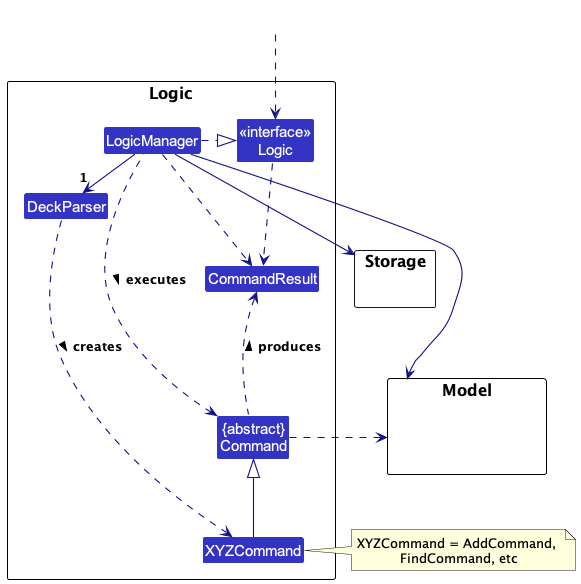

Here’s a (partial) class diagram of the Logic component:

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an DeckParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a card).
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

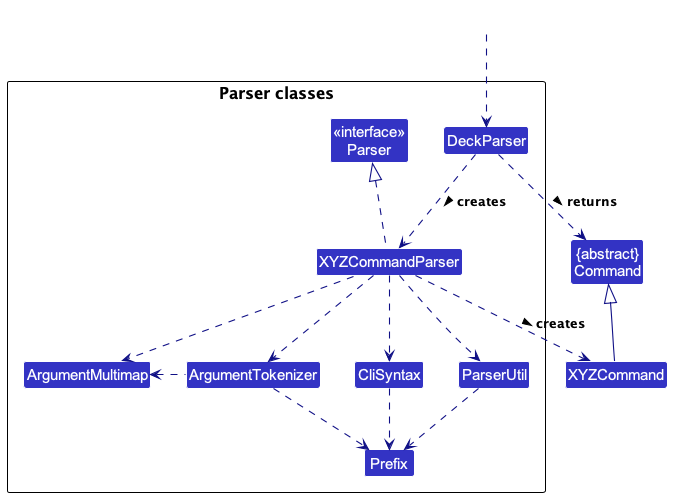

How the parsing works:

• When called upon to parse a user command, the DeckParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the DeckParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

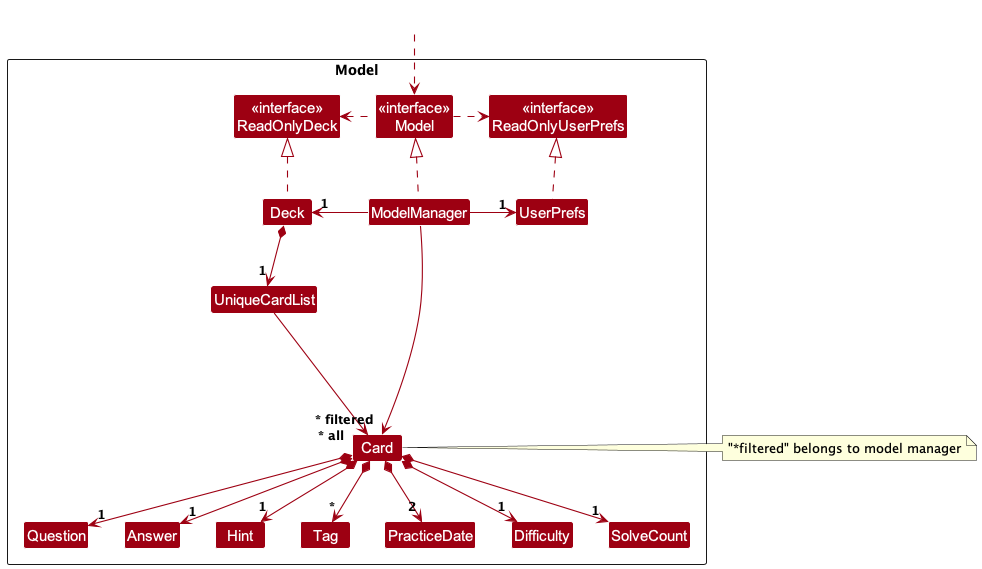

The Model component,

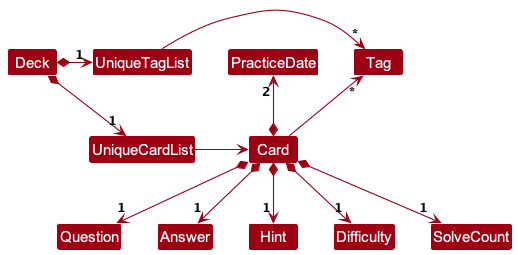

• stores the flashcard deck data i.e., all Card objects (which are contained in a UniqueCardList object).
• stores the currently ‘selected’ Card objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Card> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

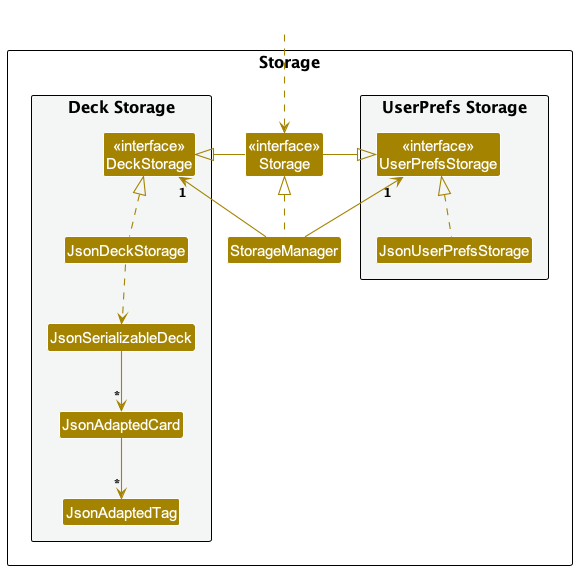

The Storage component,

• can save both deck data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both DeckStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

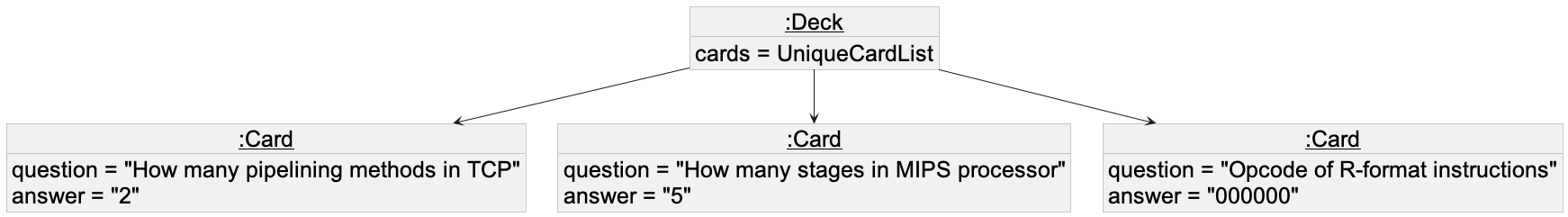

Below is an example of the object diagram of how the cards are stored in the Deck class

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Add Command

The add command can be found in the LogicManager class. User input is first parsed into the DeckParser class using the parseCommand to validate if its add command with the specified fields and format.

The add command is exposed in the Model interface as the Model#addCard Below is the overview on the add command:

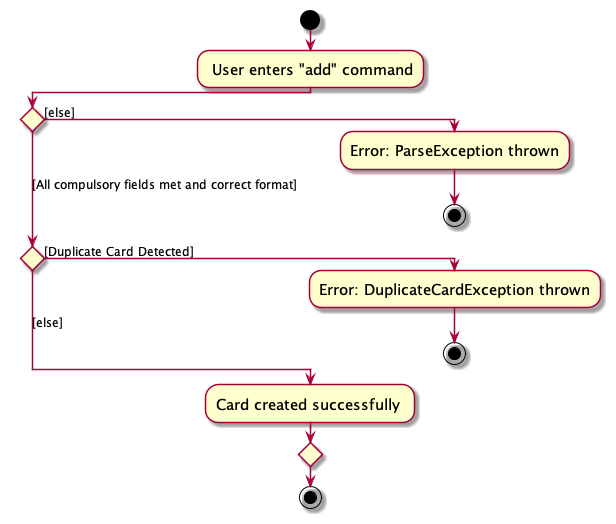

Here is the flow of how the add command is featured.

1. User inputs the following valid input add q/what does + mean in boolean algebra? a/it means OR.
2. The command is parsed into the DeckParser to verify that it has the correct format and parameters
3. Add command is executed, and if there is no duplicate entry found in DeckStorage, a new flashcard with the corresponding data will be created
4. New generated flashcard is then stored in the DeckStorage

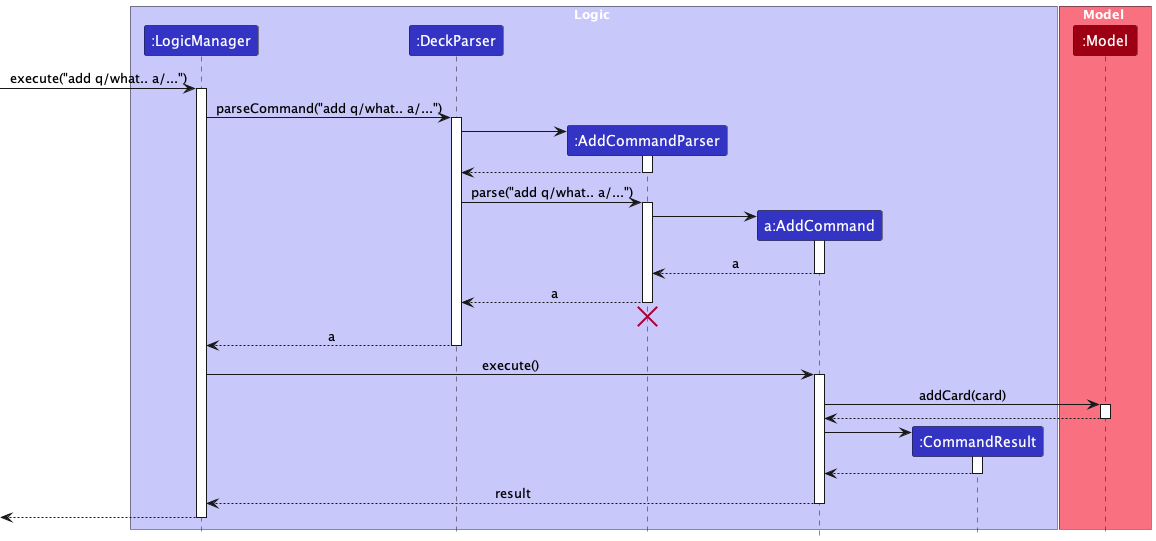

Below is the sequence diagram for this flow:

Design Considerations

Aspect: Duplicate Entry Detection:

• Alternative 1 (current choice): No restriction on case sensitivity and mark down syntax
  • Pros: Increased flexibility on how users wish to create flashcards, up to user’s choice, duplicate entry is determined only by the question and the answer input.
  • Cons: Might lead to duplicate entries of cards of similar content .
• Alternative 2: Clean the user input to obtain their intended question and answer
  • Pros: Reduces chances of duplicate cards in deck
  • Cons: Increased developer time to create such filtering functionality with little benefit

Delete Command

The delete command can be found in the LogicManager class. User input is first parsed into the DeckParser class using the parseCommand to validate if it is a valid delete command with the specified fields and format.

The delete command is exposed in the Model interface as the Model#setCard

Below is the overview on the delete command:

Here is the flow of how the delete command is featured.

1. User inputs the following valid input delete 1
2. The command is parsed into the DeckParser to verify that it has the correct format and parameter
3. Delete command is now executed. If the index is valid, when it is greater than 0 and a card exists at the specified index, the specified card is now deleted from view.
4. The corresponding card is also deleted from storage.

Below is the sequence diagram for this flow:

Filtering by Tag

The list command supports filtering the deck by tag by entering the relevant tag(s) in the command parameters. This allows the users to view specific groups of cards under the same tag, granting them more control over their study material.

Implementation

Performing a list command involves executing ListCommand.

• This command is parsed by ListCommandParser.
• ListCommandParser#parse() parses the user input to return a ListCommand object that will be executed.

Given below is an example usage of the list command to filter the deck and how the filtering mechanism behaves at each step.

1. Suppose the user has a deck containing some cards with the tag CS2103T. The user keys in this command to filter by the CS2103T tag.

    list t/CS2103T


   Note: At least one tag should be provided.

2. The ListCommandParser will execute to get the field and keyword pairs using the ArgumentTokenizer. This parses every parameter into a list of Predicate<Card> objects. The parser then returns a ListCommand object with the list of predicates.

3. The ListCommand#execute() method is invoked by the LogicManager. The list of predicates is combined into a single Predicate<Card> object. Then, ListCommand calls Model#updateFilteredCardList() with the Predicate<Card> to update the filtered flashcard list with a new list, filtered by the tag entered.

4. Finally, the ListCommand creates a CommandResult object that contains feedback and displays the filtered flashcard list to the user. This result is then returned to the LogicManager. As a result, the deck will now display only the cards with the CS2103T tag.

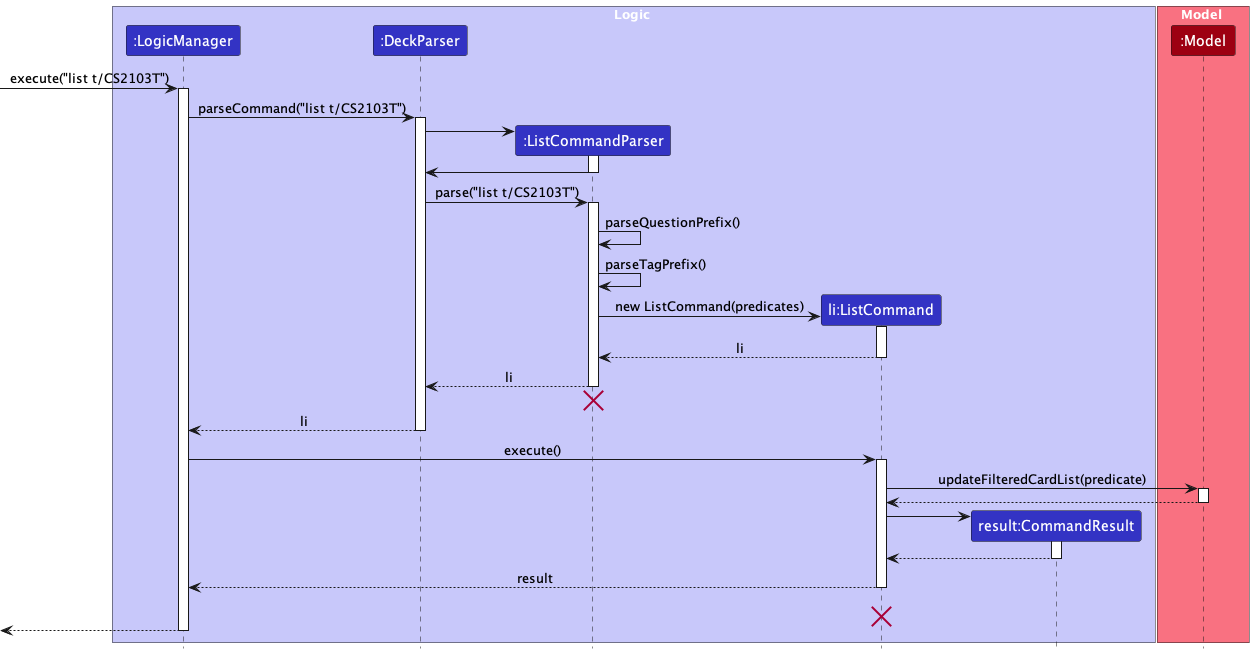

The sequence diagram below shows the process of filtering the deck with tags.

Design considerations:

Aspect: How list executes with filter parameters:

• Alternative 1 (current choice): Filter through the whole deck using the filter method on a stream of cards.
  • Pros: Easy to implement.
  • Cons:
    1. May have performance issues when Deck eventually gets too big.
    2. Inefficient if specific tag is a small fraction of Deck.
• Alternative 2: Construct a 'mini-deck' for each tag.
  • Pros: Quick search for all cards with specific tag.
  • Cons:
    1. Will use more memory.
    2. Adding/Deleting/Editing cards will require modifications to 'mini-deck'.

Random Command

The random command enables the user to practise with a random card from the deck. It offers compatibility with the solve and set commands by making sure the index of the randomly selected card is remembered for those commands.

Implementation

Performing a random command involves executing RandomCommand.

• This command does not have its own parser because it does not require any parameters.
• Hence, this command is directly executed by LogicManager

1. Suppose the user has a deck containing some cards. The user keys in this command to practise a random card.

    random


2. A new RandomCommand object is created by DeckParser.
   Note: This is slightly different from other commands, as there is no need for parsing by its own parser because there are no additional parameters to be parsed for this command.

3. The RandomCommand#execute() method is invoked by the LogicManager. RandomCommand then calls Model#getFilteredCardList() to get the deck list, so as to generate a random index. The random index is generated by calling RandomCommand#generateRandomIndex(). This random index is saved in the Model by calling Model#setRandomIndex(). This is so that the index can be accessed later by commands solve and set.

4. A random card is selected with the newly generated index, which is then used to return a CommandResult to LogicManager. As a result, the randomly selected card’s question will be shown to the user to practise with.

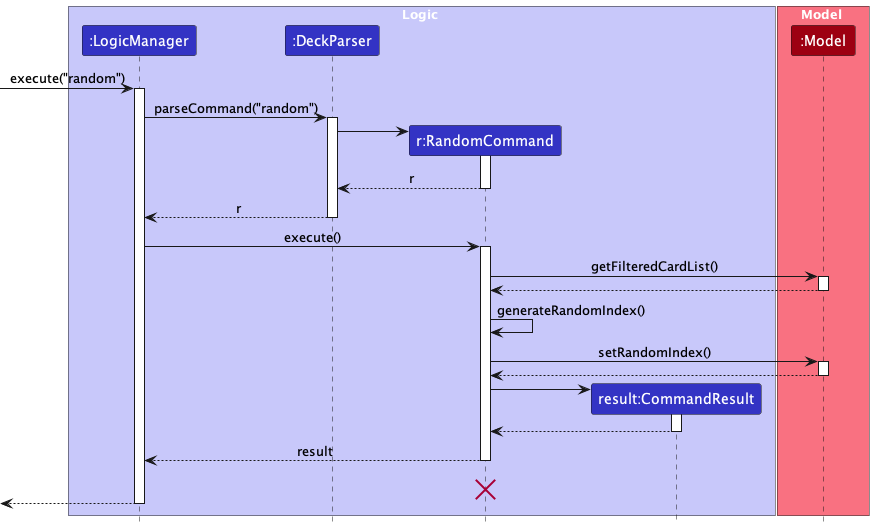

The sequence diagram below shows the process of randomly selecting a card to practise.

Design considerations:

Aspect: How random command is parsed:

• Alternative 1: Modify PractiseCommand and PractiseCommandParser to accept an r parameter to practise a random question
  • Pros: Similar command format with solve and set, so it may be easier to use for some users.
  • Cons: Harder to manage codebase because PractiseCommand will have two different responsibilities (i.e. practising in order and randomly)
• Alternative 2 (Current Choice): Implement a new command random instead of adding it as an option on practise
  • Pros:
    1. Easier to implement and manage code
    2. More extensible in the future if random needs to accept any parameters
  • Cons: No significant cons

Markdown support feature

Implementation

The feature aims to support Markdown based language for inputs and renders the corresponding display (i.e. ** Bold ** will become Bold). This provides users the freedom to adapt the content within the card, granting them more control over their study material. Users would be able to highlight more specific part of the Answer which would be the key concept tested in the exam.

Given below is an example usage of the Markdown support feature.

1. User creates a card.

2. User executes add q/ What base is hexadecimal in? a/ Hexadecimal is in **Base 16**

3. AddCommandParser will parse in the input and then, parse in the values collected in the multimap to a MarkdownParser to create a new Card.

4. The Card is added to the Model to be added to the Deck.

5. The UI renders the Card with the relevant fields meant to be written in Markdown.

Design considerations:

Aspect: How Markdown support executes:

• Alternative 1 : Use existing libraries that support Markdown using JavaFX.
  • Pros: Easy to implement.
  • Cons:
    1. Dependency on third party library.
    2. Increase application size
    3. Many features included in the library are redundant
• Alternative 2 (Current Choice): Individually support each type of Markdown language by creating our own implementation for each syntax.
  • Pros: Scope of support can be determined by developer.
  • Cons:
    1. Time-consuming.
    2. Potential for Bugs

Finalised Implementation:

Settled on using alternative 2 as it allows us to be flexible on what Markdown Syntax we want to implement. We decided to implement bold, italic and underline since they are the most commonly used ones. This also greatly reduces the application file size.

Spaced Repetition Feature

Implementation

This features aim to implement a Spaced Repetition system to schedule cards based on the level of difficulty indicated by the user. In combination with the difficulty feature, Spaced Repetition determines when is the next recommended revision date for each flashcard, to make users give more of their attention to the difficult ones and practice it earlier, optimising learning.

Using the difficulty system, we can decide a nextPracticeDate for the specified card based on the difficulty selected by the user. This helps to remove the need to manually set nextPracticeDate, and provides user with a more intuitive way to determine their nextPracticeDate based on difficulty. This is also a key feature of the app, which allows for automatic scheduling of cards and removes it off the users hands.

Possible difficulty inputs: easy, medium, hard

Any wrong input will result in an error being flagged out

Given below is an example usage of the Spaced Repetition Feature.

1. Assuming the user has existing cards in lesson, with their own set of questions and answers. These questions are sorted by a due date nextPracticeDate. Cards also have a hidden field known as lastPracticeDate.

2. After the user uses the practise command and solve command, he uses the set command to set how difficult he felt the card was when he was practising the card.

3. After setting the difficulty, the system will calculate a new nextPracticeDate. Firstly, it applies a multiplier (based on difficulty: 3, 1.5, 0.5 for easy, medium, hard respectively) to the amount of time between lastPracticeDate and nextPracticeDate, obtaining a duration. This duration is then added to the current nextPracticeDate to calculate the new nextPracticeDate. If there is no suitable lastPracticeDate to use, then this calculation alternatively adds a base duration (of 4 hours) * multiplier to nextPracticeDate.

4. The card’s nextPracticeDate and lastPracticeDate is then updated with the new fields.

5. The card is automatically sorted in the list according to the new nextPracticeDate and the more difficult cards will now appear earlier when using the practice command without index now.

Data Transfer Functionality

Both export and import features are not to be mistaken as a Command as it is meant to be used before the user decides to use our application for revision purposes.

Export

We implemented an export functionality to allow our users to port over their data with ease.

The export button will allow users to access a copy of the deck.json file and has a copy button function that allows users to copy over their deck.json file with ease.

Design considerations:

Aspect: How can we showcase the data while preventing users from editing directly:

• We decided that showing a copy of the text found in deck.json will prevent the user from directly editing deck.json, and thus prevents any accidental erasure of the deck should the user tamper with it unknowningly.

Given below is an example usage of the Export Feature.

1. User generates cards according to their needs and produced a deck for revision

2. User wishes to share their deck with peers or online, and needs a fixed format to be used across all lesSON applications

3. User navigates to the menu bar at the top of the screen and presses on it.

4. The dropdown menu displays the export function, and it produces the text of the deck.json to be copied

5. User proceeds to click on the copy data button, and it is copied to the users clipboard

Import

We implemented an import functionality to allow our users to port over their data with ease.

The Import button will allow users who have received the text from the Export function to transfer the deck of carss over, thereby effectively importing over the shared deck of cards generated by another user.

Design considerations:

Aspect: Ineffective way to modify state of deck from Import window :

• Alternative 1 : Investigate more into how we can update the deck of cards from Import window
  • Pros: Smoother user experience as the application stays running
  • Cons: Requires more extensive testing and research
• Alternative 2: Make the application restart so that it re-opens with the updated deck
  • Pros: Saves a lot of time as the logic to do so hinges on pre-existing features to operate.
  • Cons: User is forced to exit the application upon import, which might lead to a less than ideal user experience.

Given below is an example usage of the Import Feature.

1. User A has used lesSON and already a pre-existing deck of cards.

2. User A then clicks on the Export button (mentioned above).

3. User B receives the text from User A either via message, text or email.

4. User B opens lesSON and clicks on the menu button.

5. User B clicks on the Import menu button and copies and pastes the text received from A into the text field.

6. User B clicks on Import data button which will then import the data and closes the application

7. User B re-opens lesSON to see his new functional deck of cards.

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedDeck. It extends Deck with an undo/redo history, stored internally as an deckStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedDeck#commit()Saves the current deck state in its history.
• VersionedDeck#undo()Restores the previous deck state from its history.
• VersionedDeck#redo()Restores a previously undone deck state from its history.

These operations are exposed in the Model interface as Model#commitDeck(), Model#undoDeck() and Model#redoDeck() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

1. The user launches the application for the first time. The VersionedDeck will be initialized with the initial deck state, and the currentStatePointer pointing to that single deck state.



2. The user executes delete 5 command to delete the 5th card in the deck. The delete command calls Model#commitDeck(), causing the modified state of the deck after the delete 5 command executes to be saved in the deckStateList, and the currentStatePointer is shifted to the newly inserted deck state.



3. The user executes add q/What …​ to add a new card. The add command also calls Model#commitDeck(), causing another modified deck state to be saved into the deckStateList.



   Note: If a command fails its execution, it will not call Model#commitDeck(), so the deck state will not be saved into the deckStateList.


4. The user now decides that adding the card was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoDeck(), which will shift the currentStatePointer once to the left, pointing it to the previous deck state, and restores the deck to that state.



   Note: If the currentStatePointer is at index 0, pointing to the initial Deck state, then there are no previous Deck states to restore. The undo command uses Model#canUndoDeck() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the undo.


   The following sequence diagram shows how the undo operation works:



   Note: The lifeline for UndoCommand should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.


   The redo command does the opposite — it calls Model#redoDeck(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the deck to that state.

   Note: If the currentStatePointer is at index deckStateList.size() - 1, pointing to the latest deck state, then there are no undone Deck states to restore. The redo command uses Model#canRedoDeck() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the redo.


5. The user then decides to execute the command list. Commands that do not modify the deck, such as list, will usually not call Model#commitDeck(), Model#undoDeck() or Model#redoDeck(). Thus, the deckStateList remains unchanged.



6. The user executes clear, which calls Model#commitDeck(). Since the currentStatePointer is not pointing at the end of the deckStateList, all deck states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add q/What …​ command. This is the behavior that most modern desktop applications follow.

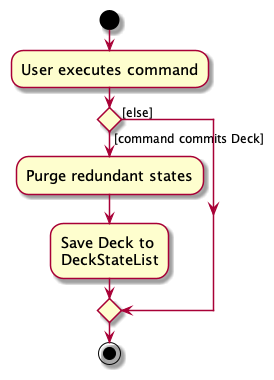

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire deck.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.
• Alternative 2: Individual command knows how to undo/redo by itself.
  • Pros: Will use less memory (e.g. for delete, just save the card being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Planned Enhancements

1. The current logic for adding and editing tag allows for duplicate tag for a single flashcard.
   • Users that use the edit or add command with duplicate tags in the command can create a flashcard with redundant tags for a single flashcard.
   • We plan to enforce uniqueness in the list of tags by using a Java Set data structure instead of a Java List data structure.
2. The current parser logic for hint does not support the use of r index.
   • Users that use random to practise a random question are unable to use hint r to check the hint of the question.
   • We plan to allow hint command to accept r index to that it can show the user the hint of the randomly selected question.
3. Current logic for Markdown syntax does not allow for the multiple Markdown syntax to be stacked for a single phrase.
   • Users that want to create a bold and underlined phrase might try <u>**WORD**</u>. However, this does not result in the expected outcome “**WORD**” and cause unexpected styling in the DisplayView.
   • We plan to refine the parsing of Markdown syntax to ensure the parsing of syntax for a particular phrase checks for every syntax instead of the first valid syntax, so that user can apply more than 1 font styles to a part of the text.

---

Appendix: Effort

Project Overview

Our project, lesSON, emerged from the adaptation of AB3 code into a dynamic flashcard application. Users engage in a two-phase learning process, viewing flashcards initially and then practicing recall. The collaborative efforts of our 5-person team resulted in a feature-rich app encompassing CRUD operations, dual-phase learning, spaced repetition, and additional features like hints and goal-setting.

Project Challenges

Adapting existing code required meticulous modifications to align with the unique requirements of a flashcard app. The main differentiating design consideration was the transition from AB3, which was mainly an information hub, to lesSON which required a 2 stage design so that the user can create and practise cards with ease.

Development Effort

The development effort invested in lesSON covered various aspects, including feature implementation, refactoring, and quality assurance. The team dedicated substantial time to refine and optimize the codebase, ensuring a robust and user-friendly flashcard application. Additionally, the presence of the automated codecov bot ensured that the code we pushed was well covered and would flag out any possible flaws in our implementation that was not covered by automated testing.

Achievements

Noteworthy achievements include successful CRUD operations, dual-phase learning, spaced repetition, and additional user-centric features.

Comparison with AB3

lesSON differentiates itself from AB3 by introducing a more dynamic and engaging learning experience. The two-phase structure, combined with features like difficulty settings and prioritized card ordering, positions lesSON as a more advanced and versatile educational tool. We introduced the element of spaced repetition so that our users can benefit the most from the studying experience. Additionally, we also include an auto priority system that would place cards that required more attention at the very front so that users can practise them more often.

Conclusion

The successful transformation of AB3 into lesSON highlights the team’s adaptability and technical expertise. Overcoming challenges, especially during the refactoring phase, demonstrates our commitment to delivering a robust and innovative flashcard application. Despite the similar looking UI, much of the consideration and design implementation went towards brainstorming how the 2 stages were to be implemented such that they complement each other and were intuitive to the user.

---

Appendix: Requirements

Product scope

Target user profile:

• is a Computer Science University student in NUS
• wishes to excel in their studies
• requires a learning aid that enforces their understanding and memorisation of the content taught
• may take several courses at once and each course is expected to have multiple topics/concepts
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps
• decently familiar with the idea of flashcards and their usages in an academic setting

Value proposition: For Computing students in University who struggle with memorisation and consolidation of knowledge, our app provides users the ability to create categorised flashcards to organise concepts taught to them fast. Optimised for CLI and users who type fast.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	new user	create a new flashcard	start adding content
* * *	user	edit the content of an existing flashcard	update my study materials
* * *	user	delete a flashcard	remove irrelevant content
* * *	user	view a list of all my flashcards	quickly access my study materials
* * *	user	organise my flashcards with tags	manage my study materials efficiently
*	user	search for a specific flashcard	edit the card accordingly
* *	user	sort my flashcards by date created or modified	view them in an organised manner
*	user who learns better with pictures	add images to my flashcards	enhance my learning experience
* * *	user who wants to update my flashcards	modify answers to my flashcard	make sure that my content is up to date
* * *	user	practise with my flashcards	test my knowledge
* *	user	shuffle the order of my flashcards during practice	avoid memorising in a fixed sequence
* * *	user	mark a flashcard as “learnt” during practice	track my progress
*	user	see statistics on my practice sessions, such as the number of cards reviewed and the time spent
* * *	user	tag my flashcards with course IDs and coursework	easily categorise them by subject
* * *	user	tag my flashcards with the type of concept (e.g., definitions, formulas, field)	filter them for specific study needs
* *	user	can change my tag colours	personalise my studying methods
* *	user	enable spaced repetition for my flashcards	optimise my memorization process
* *	user	adjust the spacing intervals for spaced repetition	personalise my learning experience
* *	diligent user	review flashcards due for repetition	reinforce my memory
* *	experienced user	format the text on my flashcards using Markdown or a similar markup language	create personalised rich content
*	experienced user	preview the formatted text on my flashcards	ensure it appears as intended
* *	picky user	customise the app’s colour scheme and interface	personalise my learning environment
* *	user	reset my progress and start fresh with my flashcards	can reattempt my studies
* *	user	export my flashcards to a file	back up my data or share it with others
* *	user	import flashcards from an external file	easily migrate or collaborate on study materials
* * *	user	access a user guide	learn how to use the app effectively
* *	user	receive notifications to remind me of my study sessions and flashcard reviews
* *	user	set daily or weekly study goals	track my progress toward my learning objectives
*	user	provide feedback or report issues to the app developers	contribute to app improvement
*	multilingual user	input non-english characters	study in other languages

Use cases

(For all use cases below, the System is lesSON and the Actor is the user, unless specified otherwise)

Use case: UC01 Creating a card

MSS:

1. User inputs command to create a card, along with the necessary details.
2. lesSON displays a success message.
3. The answer generated is not visible to the user until card selected is practised.

Use case ends.

Extension:

• 1a. lesSON detects that the given parameters are invalid
  • 1a1. lesSON displays an error message.

Use case ends.

• 1b. lesSON detects that the necessary parameters are missing
  • 1b1. lesSON displays an error message.

Use case ends

• 1c. lesSON detects that any parameters input is empty (no input after prefix)
  • 1c1. lesSON displays an error message.

Use case ends.

Use case: UC02 deleting a card

MSS:

1. User displays all cards (UC04).
2. User inputs command to delete a card, along with the index of the card.
3. lesSON displays a success message.

Use case ends.

Extension:

• 1a. lesSON detects that the given index is invalid
  • 1a1. lesSON displays an error message.

Use case ends.

Use case: UC03 filtering the card deck

MSS:

1. User displays all cards (UC04).
2. User inputs command to filter the cards, including the tags to filter the deck.
3. lesSON displays the cards that fulfill the condition using the tags.

Use case ends.

Extension:

• 1a. lesSON detects the given parameters are invalid
  • 1a1. lesSON displays an error message.

Use case ends.

Use case: UC04 displaying all cards

MSS:

1. User inputs command to view all cards.
2. lesSON displays all cards.

Use case ends.

Use case: UC05 editing a card

MSS:

1. User displays all cards (UC04).
2. User inputs command to edit a card, along with the necessary details.
3. lesSON displays a success message.

Use case ends.

Extension:

• 1a. lesSON detects that the given parameters are invalid
  • 1a1. lesSON displays a error message.

Use case ends.

Use case: UC06 practise a card

MSS:

1. User displays all cards (UC04).
2. User inputs command to practise a card with its index.
3. lesSON displays the question of the specified card.

Use case ends.

Extension:

• 1a. lesSON detects that the given index is invalid
  • 1a1. lesSON displays a error message.

Use case ends.

Use case: UC07 solve a card

MSS:

1. User displays all cards (UC04).
2. User inputs command to solve a card with its index.
3. lesSON displays the question and the answer of the specified card.

Use case ends.

Extension:

• 1a. lesSON detects that the given index is invalid
  • 1a1. lesSON displays a error message.

Use case ends.

Use case: UC08 set difficulty for a card

MSS:

1. User displays all cards (UC04).
2. User inputs command to set a difficulty of a card, by specifying its index and the difficulty.
3. lesSON displays the question and the answer of the specified card.

Use case ends.

Extension:

• 1a. lesSON detects that the given parameters are invalid
  • 1a1. lesSON displays a error message

Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 flashcards without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. User must be educated and willing to use flashcards to learn the content
5. Display box should be able to show the user’s full input

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X
• Flashcard: A two-sided card containing a question and an answer
• Tag: A label used to categorise flashcards
• Deck: A series of cards that is stored in lesSON
• Index: The position of the card in the deck
• CLI: A text-based interface where you interact with the software by typing commands into a terminal or command prompt, providing more direct and precise control over the system.
• GUI: A user-friendly interface that allows you to interact with the software through visual elements like windows, icons, buttons, and menus, making it easy to navigate with a mouse and keyboard.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. Exiting the application

   1. Press the exit button in theFile menu button or enter the exit command.

   2. Application window should close and exit as normal.

Adding a card

1. Adding a card with question and answer parameters.

   1. Prerequisites: List all cards using the list command. Multiple cards in the list.

   2. Test case: add q/What is the opcode for R-format instructions a/000000
      Expected: Addition of card with its details shown in the result display. Card is added to deck.

   3. Test case: add q/What is the opcode for R-format instructions
      Expected: Card is not created, error message appears mentioning correct format to follow.

   4. Test case: add q/What is the opcode for R-format instructions a/000000
add q/What is the opcode for R-format instructions a/000000
      Expected: Duplicate card is detected, error message appears mentioning no duplicate cards allowed

Deleting a card

1. Deleting a card while all card are being shown

   1. Prerequisites: List all cards using the list command. Multiple cards in the list.

   2. Test case: delete 1
      Expected: First card is deleted from the list. Details of the deleted card shown in the status message.

   3. Test case: delete 0
      Expected: No card is deleted. Error details shown in the status message.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Listing cards

1. Listing all cards
   1. Prerequisites: List all cards using the list command. Multiple cards in the list.

   2. Test case: list t/CS2100
      Expected: All cards with the CS2100 tag is shown in the deck.

   3. Test case: list q/What
      Expected: All cards starting with What is shown in the deck.

   4. Test case: list potato
      Expected: All cards in deck is shown, extraneous input is ignored.

Editing a card

1. Editing a card’s question

   1. Prerequisite: A card which you wish to edit is already in the deck.

   2. Test case: edit 1 q/Question 1
      Expected: Edits the first card’s question to be set as Question 1.

   3. Test case: edit 1 q/
      Expected: Blank input detected after parameter, error message appears.

   4. Other incorrect edit commands to try: edit, edit 1 x/, ... (where x is other prefixes)
      Expected: Similar to previous.

2. Editing a card’s answer

   1. Prerequisite: A card which you wish to edit is already in the deck.

   2. Test case: edit 1 a/Answer 1
      Expected: Edits the first card’s Answer to be set as Answer 1.

   3. Test case: edit 1 a/
      Expected: Blank input detected after parameter, error message appears.

   4. Other incorrect edit commands to try: edit, edit 1 x/, ... (where x is other prefixes)
      Expected: Similar to previous.

3. Editing a card’s tag

   1. Prerequisite: A card which you wish to edit is already in the deck.

   2. Test case: edit 1 t/Tag 1
      Expected: Edits the first card’s Tag to be set as Tag 1.

   3. Test case: edit 1 t/
      Expected: Removes the tag from the card.

   4. Other incorrect edit commands to try: edit, edit 1 x/, ... (where x is other prefixes)
      Expected: Error message appears.

4. Editing a card’s hint

   1. Prerequisite: A card which you wish to edit is already in the deck.

   2. Test case: edit 1 h/Hint 1
      Expected: Edits the first card’s Tag to be set as Tag 1.

   3. Test case: edit 1 h/
      Expected: Blank input detected after parameter, error message appears.

   4. Other incorrect edit commands to try: edit, edit 1 x/, ... (where x is other prefixes)
      Expected: Similar to previous.

Practising a card

1. Practising a card

   1. Prerequisite: A card which you wish to practise is already in the deck.

   2. Test case: practise 1
      Expected: Practises the first card in the deck.

   3. Test case: practise 1 potato
      Expected: Additional input detected after index, error message appears.

   4. Other incorrect practise commands to try: practise, practise 1 x/, ... (where x is other prefixes)
      Expected: Similar to previous.

Solving a card

1. Solving a card

   1. Prerequisites: List all cards using the list command. Multiple cards in the list.
   2. Test case: solve
      Expected: The answer of the first card is displayed.
   3. Test case: solve 2
      Expected: The answer of the second card is displayed.
   4. Test case: solve 0
      Expected: No card is solved. Error details shown in the status message.
   5. Other incorrect delete commands to try: solve x, ... (where x is larger than the list size or negative)
      Expected: Similar to previous.

Setting difficulty of a card

1. Setting difficulty of a card

   1. Prerequisites: List all cards using the list command. Multiple cards in the list.
   2. Test case: set d/easy
      Expected: The difficulty of the first card is set to easy and new difficulty is displayed. The ‘due date’ of the card is changed to reflect the difficulty based on the spaced repetition system.
   3. Test case: set 2 d/medium
      Expected: Similar to previous but difficulty is now medium and new ‘due date’ is later.
   4. Test case: set d/invalid
      Expected: Difficulty is not set. Error details shown in the status message.
   5. Test case: set 0 d/hard
      Expected: Difficulty is not set. Error details shown in the status message.
   6. Other incorrect delete commands to try: set x d/hard, set d/y, ... (where x is larger than the list size or negative and y is any other invalid difficulty)
      Expected: Similar to previous.

Setting a goal

1. Setting goal of a session

   1. Test case: goal 1
      Expected: Goal of the session is set to 1 and displayed in the goal box.
   2. Test case: goal invalid
      Expected: Goal is not updated. Error details shown in the status message.
   3. Test case: goal 0
      Expected: Goal is not updated. Error details shown in the status message.
   4. Other incorrect delete commands to try: goal, goal x, ... (where x is larger than the MAX_INTEGER or negative)
      Expected: Similar to previous.

Choosing a random card

1. Selecting a random card

   1. Prerequisite: There are multiple cards shown in the deck.

   2. Test case: random
      Expected: Randomly chooses a card in the deck and sets its index as r

   3. Test case: random x
      Expected: Additional input detected after index, error message appears.

   4. Other incorrect random commands to try: random, random 1 x/, ... (where x is other prefixes)
      Expected: Similar to previous.

Clearing a deck

1. Cleansing a deck of all cards

   1. Prerequisite: There are multiple cards shown in the deck.

   2. Test case: clear
      Expected: Removes all cards in the deck.

   3. Other incorrect random commands to try: clearx (where x is other prefixes)
      Expected: Error message appears.

Getting help

1. Getting help from user guide

   1. Test case: help
      Expected: Help window pops up with the link to user guide.
   2. Other incorrect random commands to try: helpx (where x is other prefixes)
      Expected: Error message appears.
